CSCI 480 - Operating Systems - Exam 1 Review Sheet

This is a study guide I wrote to help myself review for my first exam in my operating systems class. The majority of information used to write this guide comes from our textbook. I tried to cover all the topics listed on the review sheet.

Additional Readings

• https://www2.cs.uic.edu/~jbell/CourseNotes/OperatingSystems/
• Google Doc created by another student in my class

Content

1. Exam Information
2. Introduction and OS Structures
   1. Operating System Components
   2. System Calls
   3. Linux System Calls
   4. System Programs
3. Process Management
   1. Process Control Block
   2. Schedulers
   3. Scheduling Queues
   4. Context Switch
   5. Interprocess Communication
   6. Zombie and Orphan Processes
4. Threads
   1. Differences Between Threads And Processes
   2. Kernel And User Threads
   3. Threading Models
5. CPU Scheduling
   1. Performance Criteria
   2. Preemptive And Non-Preemptive Scheduling
   3. Scheduling Algorithms
6. Process Synchronization
   1. Race Condition
   2. Critical Section Problem
   3. Semaphores
7. Deadlock
8. Additional Notes

Exam Information

• Date: Monday, 2/24/2020
• Time: 11:00am - 11:50am
• Location: PM 253
• Covers material over:
  • chapters 1-7 in our textbook
  • Assignments 1, 2, and 3
• Test includes a few true-false questions, short answer, and some longer written answers
  • Does not include long coding questions

↑ Back to top

Introduction and OS Structures

Operating System Components

User Interface	means by which users can issue commands to the system
Program Execution	the OS must be able to load a program into RAM, run the program, and terminate the program, either normally or abnormally
I/O Operations	transferring data to and from I/O devices, including keyboards, terminals, printers, and storage devices
File-System Manipulation	maintaining directory and subdirectory structures, mapping file names to specific blocks of data storage, and providing tools for navigating and utilizing the file system
Communications	inter-process communications, IPC, either between processes running on the same processor, or between processes running on separate processors or separate machines
Error Detection	both hardware and software errors must be detected and handled appropriately, with a minimum of harmful repercussions

System Calls

• provide a means for user or application programs to call upon the services of the OS
• generally written in C or C++
• six types:
  1. process control
  2. file management
  3. device management
  4. information maintenance
  5. communications
  6. protection

Linux System Calls

getpid() and getppid()

• getpid() returns the process id of the calling process
• getppid() returns the process id of the parent of the calling process

fork()

• fork() creates a new process (a child of the calling process) by duplicating the calling process
• the entire address space is duplicated:
  • code
  • variables
  • file descriptors
• return codes:
  • -1 means an error occurred

system() vs execlp()

• system() internally uses a fork and executes in the child process
• execlp() replaces the executable code for what its doing
  • when it terminates, the whole process terminates

System Programs

• provide OS functionality through separate applications, which are not part of the kernel or command interpreters

• also known as system utilities or system applications

• can be provided into these categories:

  file management	programs to create, delete, copy, rename, print, list, and generally manipulate files and directories
  status information	utilities to check on the date, time, number of users, processes running, data logging, etc.
  file modification	text editors and other tools which can change file contents.
  programming language support	compilers, linkers, debuggers, profilers, assemblers, library archive management, interpreters for common languages, and support for make.
  program loading and execution	loaders, dynamic loaders, overlay loaders, etc., as well as interactive debuggers.
  communications	programs for providing connectivity between processes and users, including mail, web browsers, remote logins, file transfers, and remote command execution.
  background services	system daemons are commonly started when the system is booted, and run for as long as the system is running, handling necessary services

↑ Back to top

Process Management

• a process is a program in execution
• as a process executes, it changes state
  • the state of a process is defined by that process' current activity
• each process can be in one of the following states:

  new	the process is being created
  ready	the process is waiting to be assigned to a processor
  running	instructions are being executed
  waiting	the process is waiting for some event to occur
  terminated	the process has finished execution

Process Control Block

• a process control block (PCB) represents each process in the operating system

  process state	can be new, ready, running, waiting, etc...
  program counter	indicates the addess of the next instruction to be executed in this process
  cpu registers	can include accumulators, index registers, stack pointers, and general purpose registers
  cpu scheduling info	includes a process priority, pointers to scheduling queues, and other scheduling parameters
  memory management info	may include the value of the base and limit registers, page tables
  accounting info	amount of cpu and real time used, time limits, account numbers, job and process numbers
  I/O status	the list of I/O devices allocated to the process, a list of open files

Schedulers

• the process scheduler selects an available process for program execution on the CPU
• often, on a batch system, more processes are submitted than can be executed
  • these processes are spooled to a storage device where they are kept for later execution
• the long term scheduler selects processes from this pool and loads them into memory
• the short term scheduler selects from the process that are ready to execute and allocates the CPU to one of them
  • also called the cpu scheduler

Short Term vs Long Term

• the primary distinction between the 2 schedulers lies in frequency of execution
• the short term scheduler selects processes frequently
• the long term scheduler select processes much less frequently
  • minutes may separate the creation of one new process and the next

Degree of Multiprogramming

• the degree of multiprogramming is the number of processes in memory
• controlled by the long term scheduler
• if the degree of multiprogramming is stable, then the average rate of process creation must be equal to the average departure rate of processes leaving the system
  • average process creation rate = average departure rate

Medium Term Scheduler

• some OS use an additional level of scheduling called a medium term scheduler
• the idea is to remove a process from memory for a time, then later reintroduce it into memory in order to reduce the degree of multiprogramming
  • this scheme is called swapping

Scheduling Queues

• as processes enter the system, they are put into a job queue
• the ready queue is a list of the processes residing in main memory and are waiting to execute
• the device queue is a list of processes waiting for a particular I/O device
  • each device has its own device queue

Context Switch

• a context switch is where a state save of the current process and a state restore of a different process is performed
• occurs when switching the CPU to another process
• when a context switch occurs, the kernel saves the context of the old process in its PCB and loads the saved context of the new process that is scheduled to run
• pure overhead since the system does no useful work while switching

Interprocess Communication

• processes executing concurrently may be either independent or cooperating
• independent processes cannot affect or be affected by other processes
  • does not share data with other processes
• cooperating processes can affect or be affected by other processes
  • can share data with other processes
• reasons for allowing process cooperation:
  • information sharing
  • computation speedup
  • modularity
  • convenience

Interprocess Communication

• cooperating processes require an interprocess communication (IPC) mechanism that will allow them exchange data
• 2 fundamental models for IPC:
  • shared memory
  • message passing

Shared Memory

• shared memory models have a region of memory that is shared by cooperating processes
• info can be read and written to by the processes in the shared region
• advantages:
  • allows maximum speed and convenience of communication
  • faster than message passing

Message Passing

• message passing models communicate by means of message exchanges between cooperating processes
• advantages:
  • smaller amounts of data
  • easier to implement

Zombie and Orphan Processes

Zombie processes

• zombie processes are processes that have completed execution, but still has an entry in the process table
• entry is still needed to allow the parent process to read ints child exit status
• cannot directly kill a zombie process because its already dead
• to kill a zombie process you should kill the parent process

Orphan processes

• a process whose parent has finished, though remains running itself
• parent process id is change to init which is 1

↑ Back to top

Threads

• a thread is a basic unit of CPU utilization
• it is comprised of:
  • thread ID
  • program counter
  • register set
  • a stack
• if a process has multiple threads of control, it can perform more than one task at a time

Differences Between Threads And Processes

Process	Thread
typically independent	Subset of a process
has considerably more state information than thread	multiple threads within a process
separate address spaces	share their address space
interact only through system IPC

Kernel And User Threads

• kernel threads are supported and managed directly by the OS
• user threads are supported by above the kernel and are managed without kernel support

Threading Models

• a relationship must exist between user and kernel threads
• three common ways of establishing these relationships:
  1. Many-to-One
  2. One-to-One
  3. Many-to-Many

Many-to-One

• maps many user level threads to one kernel thread
• thread management is done by the thread library in user space

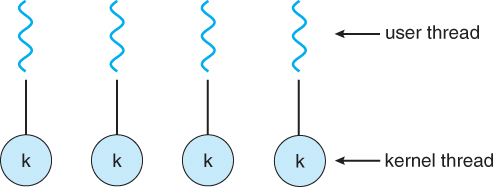

One-to-One

• maps each user thread to a kernel thread
• provides more concurrency than many-to-one by allowing another thread to run when a thread makes a system blocking call
• allows multiple threads to run in parallel on multiprocessors

Many-to-Many

• multiplexes many user level threads to a smaller or equal number of kernel threads
• the number of kernel threads may be specific to either a particular application or machine

↑ Back to top

CPU Scheduling

• when the CPU becomes idle, the CPU scheduler is tasked with selecting another process from the ready queue to run next
• a scheduling system allows one process to use the CPU while another is waiting for I/O
  • this makes full use of otherwise lost CPU cycles
• the challenge is to make the overall system as efficient and fair as possible

Performance Criteria

Criteria	Description
CPU Utilization	percentage of used cycles
Throughput	jobs completed per time unit
Turnaround Time	time from submission to completion
Waiting Time	time waiting in ready queue
Response Time	time from submission until first response

Preemptive and Non-Preemptive Scheduling

• CPU scheduling decisions take place under one of the four conditions:

Non Preemptive	Preemptive
When a process switches from the running state to the waiting state, such as for an I/O request or invocation of the wait( ) system call.	When a process switches from the running state to the ready state, for example in response to an interrupt.
When a process terminates.	When a process switches from the waiting state to the ready state, say at completion of I/O or a return from wait( ).

Non Preemptive

• also called cooperative
• in these conditions, there is no choice
• a new process must be selected
• once a process starts, it keeps running until either voluntarily blocks or until it finishes

Preemptive

• scheduler has a choice

Scheduling Algorithms

• Six common CPU scheduling algorithms:
  • First Come First Serve
  • Shortest Job First
  • Priority Based
  • Round Robin
  • Multi-Level Queue
  • Multi-Level Feedback

First Come First Serve (FCFS)

• first in first out queue
• like customers waiting in line at the bank or the post office
• can yield very long average wait times
  • particularly if the first process to get there takes a long time
• can be bad because of the convoy effect that results as I/O bound jobs pile up behind CPU-bound jobs

Shortest Job First (SJF)

• picks the quickest, fastest, little job that needs to be done, then moves on to the next quickest
• gives the minimum average waiting time for

Priority

• more general case of SJF
• each job is assigned a priority and the job with the highest priority gets scheduled first
• problems include indefinite blocking which can be solved by aging

Round Robin

• similar to FCFS scheduling, except that CPU bursts are assigned with limits called time quantum
• gives everything a time slice
• when a process is given to the CPU, a timer is set for whatever value has been set for a time quantum
  • if the process finishes its burst before the time quantum expires, then it is swapped out the CPU
  • if the timer goes off first, then the process is swapped out of the CPU and moved to the back end of the ready queue
• maintained as a circular queue

Multi-Level Queue

• When processes can be readily categorized, then multiple separate queues can be established, each implementing whatever scheduling algorithm is most appropriate for that type of job, and/or with different parametric adjustments.
• Scheduling must also be done between queues, that is scheduling one queue to get time relative to other queues
• two common options:
  • strict priority: no job in a lower priority queue runs until all higher priority queues are empty
  • round robin: each queue gets a time slice in turn, possibly of different sizes

Multi-Level Feedback

• similar to the ordinary multilevel queue scheduling described above, except jobs may be moved from one queue to another for a variety of reasons:
  • if the characteristics of a job change between CPU-intensive and I/O intensive, then it may be appropriate to switch a job from one queue to another
  • aging can also be incorporated, so that a job that has waited for a long time can get bumped up into a higher priority queue for a while
• most flexible because it can be turned on for any situation
• most complex to implement
• parameters that define these systems include:
  • number of queues
  • the scheduling algorithm for each queue
  • methods used to upgrade or demote processes from one queue to another
  • method used to determine which queue a process enters initially

↑ Back to top

Process Synchronization

Race Condition

• race condition is when two or more processes run in parallel and output depends on order in which they are executed
• to guard against the race condition, we need to ensure that only one process at a time can be manipulating shared data that is crucial to the outcome of the program
• to do this, we use process synchronization

Critical Section Problem

• each process has a segment of code called a critical section where the process may be changing common variables, updating a table, writing a file, etc...
• the OS needs a feature that, when one process is executing in its critical section, no other process is to be allowed to execute in its critical section
  • no two processes should be executing in their critical sections at the same time
• solutions to the critical section problem must satisfy the following three requirements:
  1. mutual exclusion: if a process is executing in its critical section, then no other processes can be executing in their critical sections
  2. progress: if not process is executing in its critical section and some processes wish to enter their critical sections, then only those processes that are not executing their remainder sections can participate in deciding which will enter its critical section next, and this selection cannot be postponed indefinitely
  3. bounded waiting: there exists a limit on the number of times that other processes are allowed to enter their critical sections after a process has made a request to enter its critical section and before that request is granted

Semaphores

• semaphores are integer variables for which only two atomic operations are defined:
  • wait - allows the process to use a resource
  • post - stops locking everything out after it's done with the resource
• the main disadvantage of the semaphore is that it requires busy waiting
  • while a process is in critical section, any other process that tries to enter its critical section must loop continuously in the entry code

Implementation

Define a semaphore as a "C" struct:

typedef struct {
   int value;
   struct process *list;
} semaphore;

The wait() semaphore operation can now be defined as:

wait(semaphore *S) {
   S->Value--;

   if (S->Value < 0) {
      add this process to S->list;
      block();
   }
}

The post() semaphore operation can now be defined as:

post(semaphore *S) {
   S->Value++;

   if (S->Value <= 0) {
      remove a process P from S->list;
      wakeup(P);
   }
}

↑ Back to top

Deadlock

• a set of processes is deadlocked when every process in the set is waiting for a resource that is currently allocated to another process in the set

There are four necessary conditions for deadlock.

Mutual Exclusion	The resources involved are non-shareable
Hold and Wait	A process must be simultaneously holding at least one resource and waiting for at least one resource that is currently being held by some other process.
No Preemption	Once a process is holding a resource then that resource cannot be taken away from that process until the process voluntarily releases it.
Circular Wait	The processes in the system form a circular list or chain where each process in the list is waiting for a resource held by the next process in the list.

Prevention

• we can try to detect it and recover
• deadlocks can be avoided by preventing one of the four required conditions
• to prevent the Hold and Wait:
  • require that all processes request all resources at one time
  • require that processes holding resources must release them before requesting new resources
• to prevent No Preemption:
  • require that if a process is forced to wait when requesting a new resource, then all other resources held by this process are implicitly released
• to prevent Circular Wait:
  • number all resources, and require that processes request resources only in strictly increasing or decreasing order

Example of a Deadlock

↑ Back to top

Additional Notes

↑ Back to top
